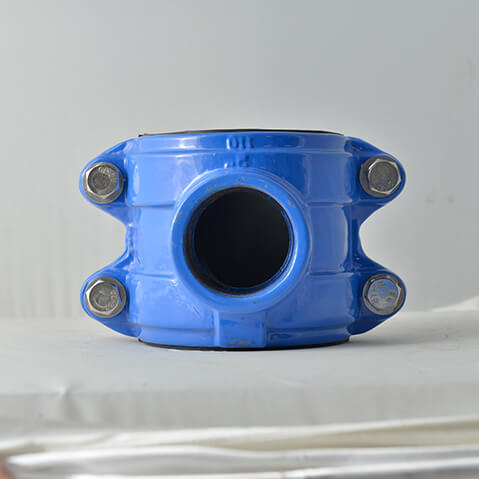

 saddle

Allows full screwing to guarantee the saddle waterproof. Ductile iron GGG50 material FBE coated ,pressure working; PN10, PN16, EPDM or NBR rubber seals.

Equipped with galvanized or Stainless steel bolts, nuts.
1) Product Information

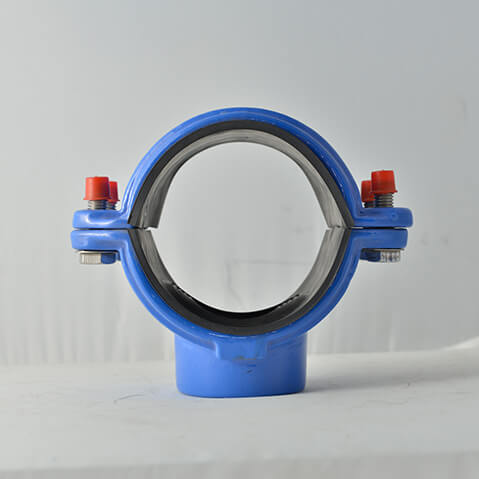

The saddle clamp is designed for PVC pipe to split the water from main pipe.
Foundry has been supplying saddle clamp for over 10 years and product surface shall be smooth and free from sand holes, blow holes, distortion or any other defects.

2) Material
Body:
Ductile iron grade 500-7/ 450-10 in accordance with EN1563
Gasket:
Rubber EPDM/SBR/NBR in accordance with EN 681-1
Bolts and washer:
Stainless steel

3) Process
Automatics machine lines
Resin Sand
Molding Boards
Green Sand with hand molding

4) Inscription Style
As per customers' requests
Standard Inscription

5)Packing
Wood crates
Wood pallets
As per customers' requirements

6)Inspection
Foundry in-house
Third Party inspection available upon request
